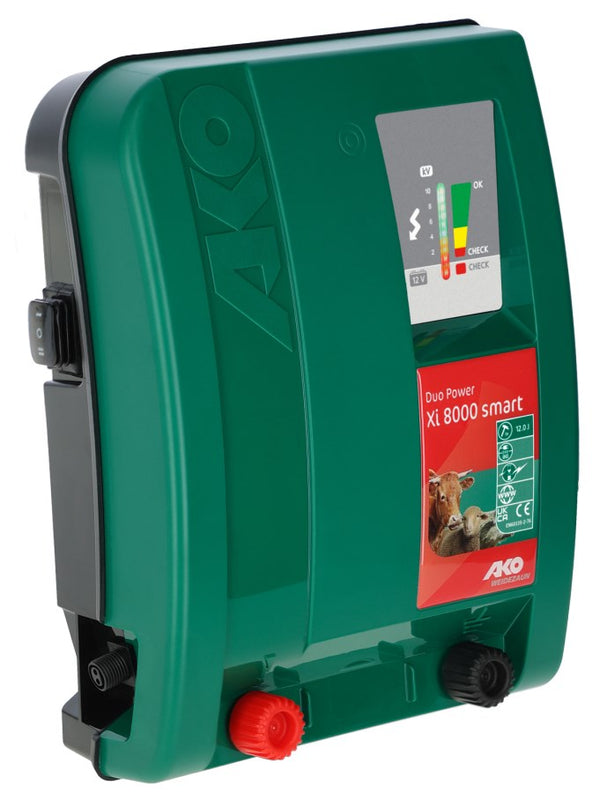

AKO -Duo Power Xi 8000 smart-12/230 V Fence Device, 12 Joule

The AKO DUO Power Xi 8000 Smart offers a high-performance solution for fencing your pastures. With 12 Joules of charging energy and a maximum voltage of 11,200 V, this device ensures the necessary security even for long fence systems. Especially convenient is the direct cloud connectivity, allowing you to monitor and control your fence at any time via smartphone or browser. The mobile data transmission is permanently free of charge, so you don't have to plan for any additional fixed costs.

Thanks to the flexible 12/230 V power supply, you can use the device for both stationary and mobile applications. It is ideally suited for keeping horses, cattle, or sheep with heavy vegetation. The robust housing, made of impact-resistant and UV-stabilized plastic, is specifically developed for outdoor use and withstands various weather conditions. A multi-colour LED display provides real-time feedback on the fence voltage and current battery status, while the integrated power-saving circuit efficiently optimizes consumption.

Overview:

• Dual-purpose device for mobile and stationary use
• Free app control via integrated cloud
• High impact power for fences up to 50 km
• Weatherproof housing made of specialized plastic
• Visual monitoring via LED bar graph display
• Five-year manufacturer's warranty

Technical Specifications:

• Charging Energy: 12 J
• Max. Discharge Energy: 8 J
• Max. Voltage: 11,200 V
• Max. Fence Length (no vegetation): 50 km
• Power Supply: 12 V / 230 V
• Power Consumption: 165 mA - 570 mA
• 12/230 Volt DUO Unit – maximum flexibility combined with powerful output

• multi-colour, illuminated bar graph display (10 LEDs) for monitoring the output voltage
• separate LED for battery warning (red)
• optimised consumption thanks to energy saving mode – saves battery power in fences in good condition. Also intelligent battery management for when battery voltage decreases.
• deep discharge protection for the 12 volt battery
• microprocessor controlled

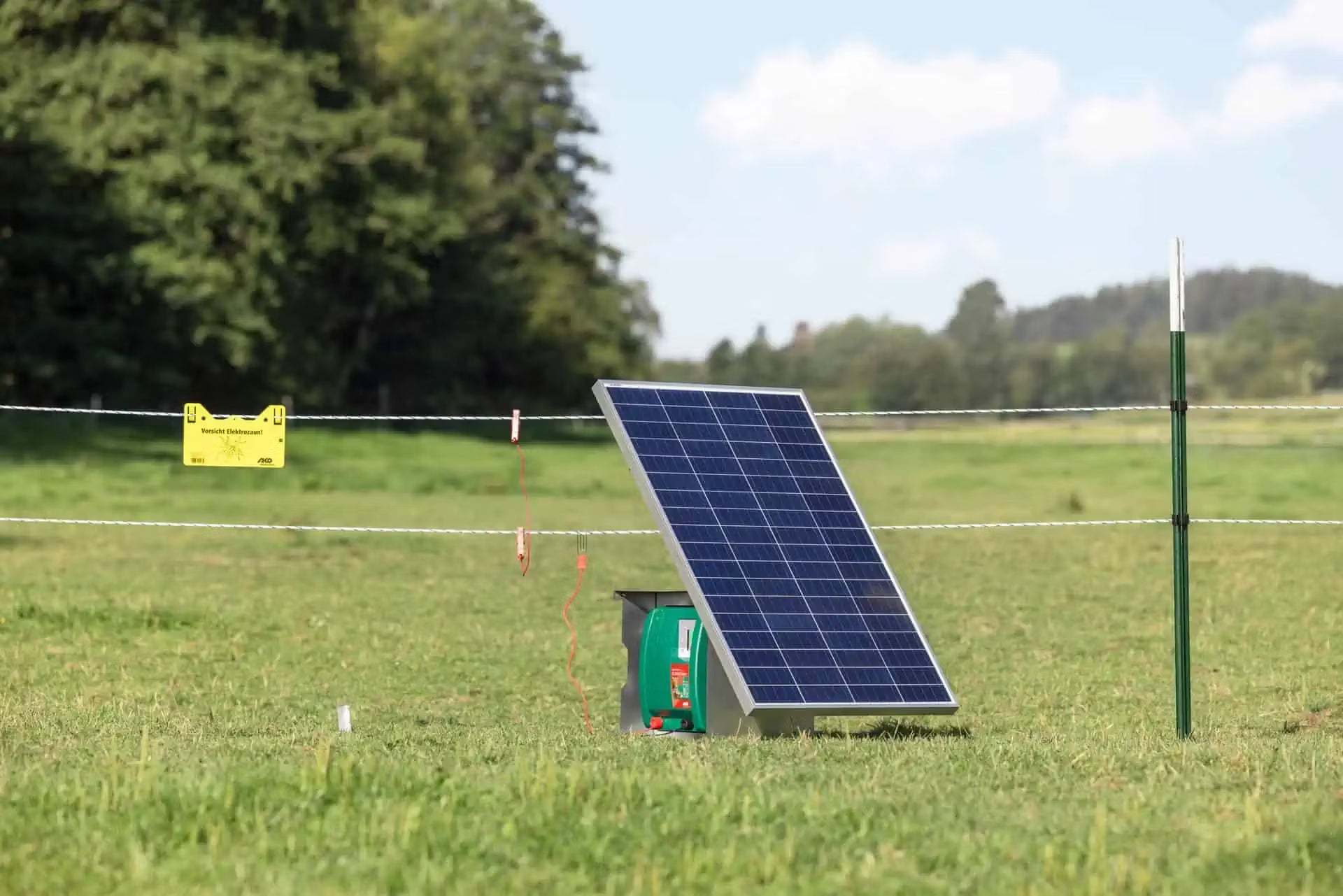

• solar backup possible
• robust, impact-resistant, UV-resistant and weather-resistant housing thanks to the use of high-quality plastics
• integrated hanging device for wall mounting
• corresponds to applicable EU safety standards
• (suitable for metal box 44656 and 44650)
• AKO Xi device automatically adapts to the fence status, ensures highest protection certainty, and makes your work easier by reducing vegetation growth to a certain degree
• the fence is constantly monitored by an alarm function, which triggers an alarm and slows the pulse sequence if the fence is touched for an extended period of time
• delayed shock strength adjustment makes touching the fence safer for people and animals

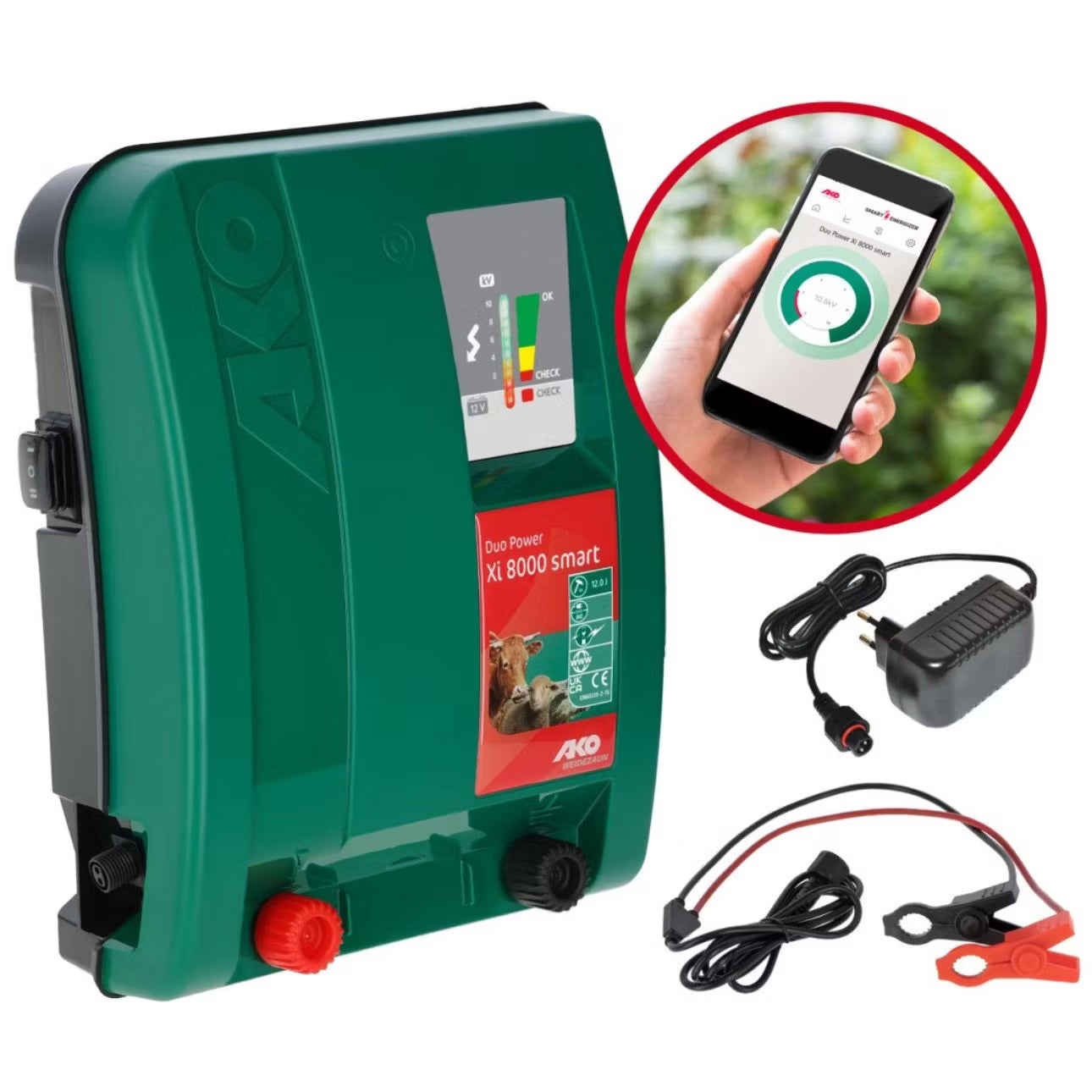

Scope of Delivery:

1 x AKO DUO Power Xi 8000 Smart 12 V Energizer
1 x 230 Volt Power Adapter
1 x 12 Volt Connection Cable
1 x Fence/Earth Connection Cable
1 x Warning Sign

Questions & Answers:

How do I know if my fence is working properly?
The device features an 11-stage LED bar graph display. This visually indicates whether the output voltage is above 2,000 V or if the battery needs to be recharged.

What happens in the event of a power failure or an empty battery?
Thanks to the smart connectivity, you will be notified directly via the app if the fence voltage drops or the battery status becomes critical. This allows you to react immediately before the safety of your animals is compromised.

Can I mount the device outdoors?
Yes, the high-quality plastic housing is UV-resistant and weatherproof. However, for outdoor installation, the device should be additionally protected from direct continuous rain and extreme sunlight to increase its longevity.
